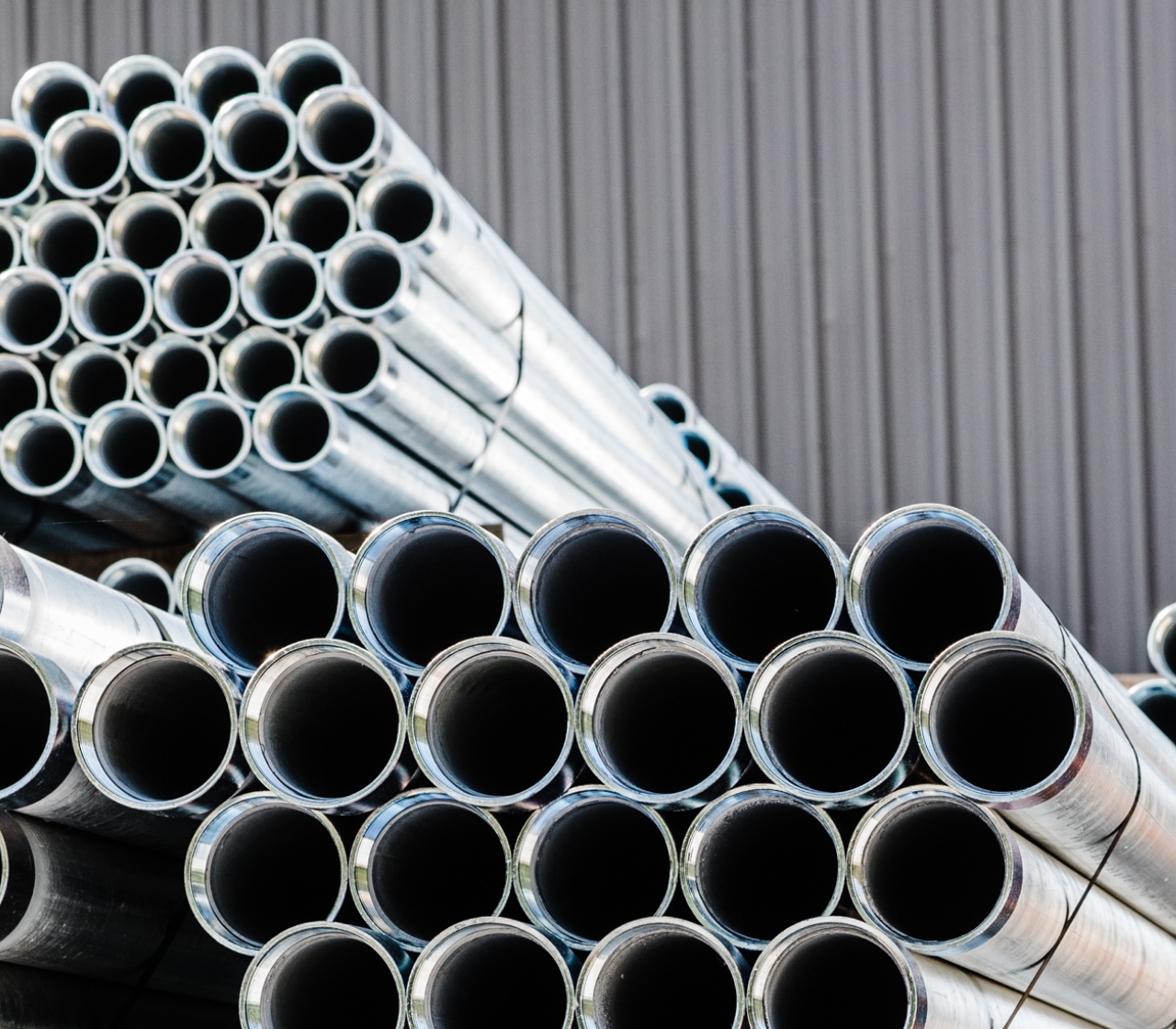

Nucor manufactures EMT, IMC, GRC and rigid aluminum conduit in the full range of trade sizes. We are the only manufacturer to offer features on our EMT designed to reduce installation costs and avoid jobsite delays, including Inch-Mark^®, Guide-Line^®, Silverslick^® and diamond-knurled I.D.

Our rigid aluminum conduit is made from T-1 tempered 6063 aluminum alloy, meeting UL6A and ANSI C80.5 standards. Available in trade sizes from ½ to 6 inches, it provides a non-magnetic and non-sparking lightweight, corrosion-resistant raceway

Nucor offers electrical metallic tubing (EMT), color EMT and intermediate metal conduit (IMC) in common trade sizes of 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 2-1/2 in, 3 in, 3-1/2 in and 4 in.
For Galvite ERMC-S (GRC or RIG) and rigid aluminum conduit (RAC), Nucor offers common conduit trade sizes of 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 2-1/2 in, 3 in, 3-1/2 in, 4 in, 5 in and 6 in.

All sizes are furnished in nominal 10’ lengths when supplied with coupling. Please see our resources section to download spec sheets for specific products.

Nucor acquired Republic Conduit in 2017, which is now often referred to as Nucor Republic Conduit. Previously, Republic Conduit had been part of Maverick Tube, LTV and Republic Steel, among other companies. As part of Nucor’s Tubular Products group, we can leverage the capabilities of North America’s largest steel and steel products manufacturer to provide comprehensive solutions and services to our customers.

Nucor’s electrical conduit is:

• Fire- and impact-resistant
• Chemically compatible with concrete
• Made from recycled scrap materials through a sustainable electric arc furnace (EAF) steelmaking process
• Recyclable once the steel products reach the end of their lifecycle
• Simple to install
• Equipped with physical and mechanical protection and electromagnetic interference (EMI) shielding.

Nucor is dedicated to excellent customer support and offers multiple product benefits, including:

• Easy to bend: Nucor’s electrical metallic tubing (EMT) is made from an exclusive steel formula that provides high ductility and strength. Together with our manufacturing process geared toward exacting internal standards, the product promotes wrinkle-free bends, reduced kinking and minimized splitting from repeated bending and straightening. 
• Reduced life cycle cost: Our conduit is impact-resistant, noncombustible, chemically compatible with concrete and resists cracking, flaking and damage from severe bending. It is also adaptable and can accommodate future wiring changes or upgrades as needed over the life of the building. The physical and mechanical properties of Nucor’s EMT ensure that the tube has an extended shelf life, which is great for immediate use or storage without degradation in quality.
• Circularity: All of Nucor’s steel products are made through a sustainable EAF steelmaking process that uses recycled materials as its primary input, and our steel conduit can also be 100 percent recycled at the end of its useful life. 
• Protection: Steel conduit can be used as a redundant ground, protecting people from  the harmful effects of faulty wiring. Steel conduit also inherently shields sensitive electrical equipment from the effects of electromagnetic interference.
• Made in America: Nucor Republic Conduit products are manufactured in the U.S.    

Electrunite Electrical Metallic Tubing (EMT) is designed with the user in mind as the easiest electrical conduit to bend currently available in the marketplace.

• Nucor offers proprietary features on small-diameter EMT, such as Inch-Mark and Guide-line, which help reduce bending and measurement errors during installation.
• Nucor Electrunite EMT is the only domestic electrogalvanized EMT available on the market today. Electrogalvanizing provides uniform galvanized protection to the entire tube, including the ends of the pipe, which are commonly subject to exposure damage. Together, these features ensure smooth bends, consistent welds and easy installs on the job site, minimizing time and money lost to replacing faulty products.
• Our steel conduit can be 100 percent recycled at the end of its useful life. Nucor products are manufactured using EAF technology in the U.S. from domestically sourced scrap metal and raw materials.
• Nucor EMT products are manufactured in the U.S. from American-made steel.

Silverslick is a protective, slick inside coating designed to reduce friction when pulling or pushing electrical wires through the EMT. The Silverslick finish remains hard and smooth in various climate conditions, protecting your conduit and your investment.

Nucor’s proprietary Inch-Mark and Guide-Line improve accuracy and time efficiency, assisting the installer in bending the conduit through a single plane and measuring without needing a ruler, reducing installation time and cost from mistakes.

Yes, Nucor is the only conduit manufacturer in the United States to electrogalvanize EMT and IMC, resulting in protective zinc coatings that do not flake or chip when subjected to extreme stress. Electrogalvanizing also provides uniform galvanized protection to the entire tube, even the ends of the pipe commonly subject to exposure damage. Together, these features ensure smooth bends, consistent welds and easy installs on the job site, minimizing time and money lost to replacing faulty products.

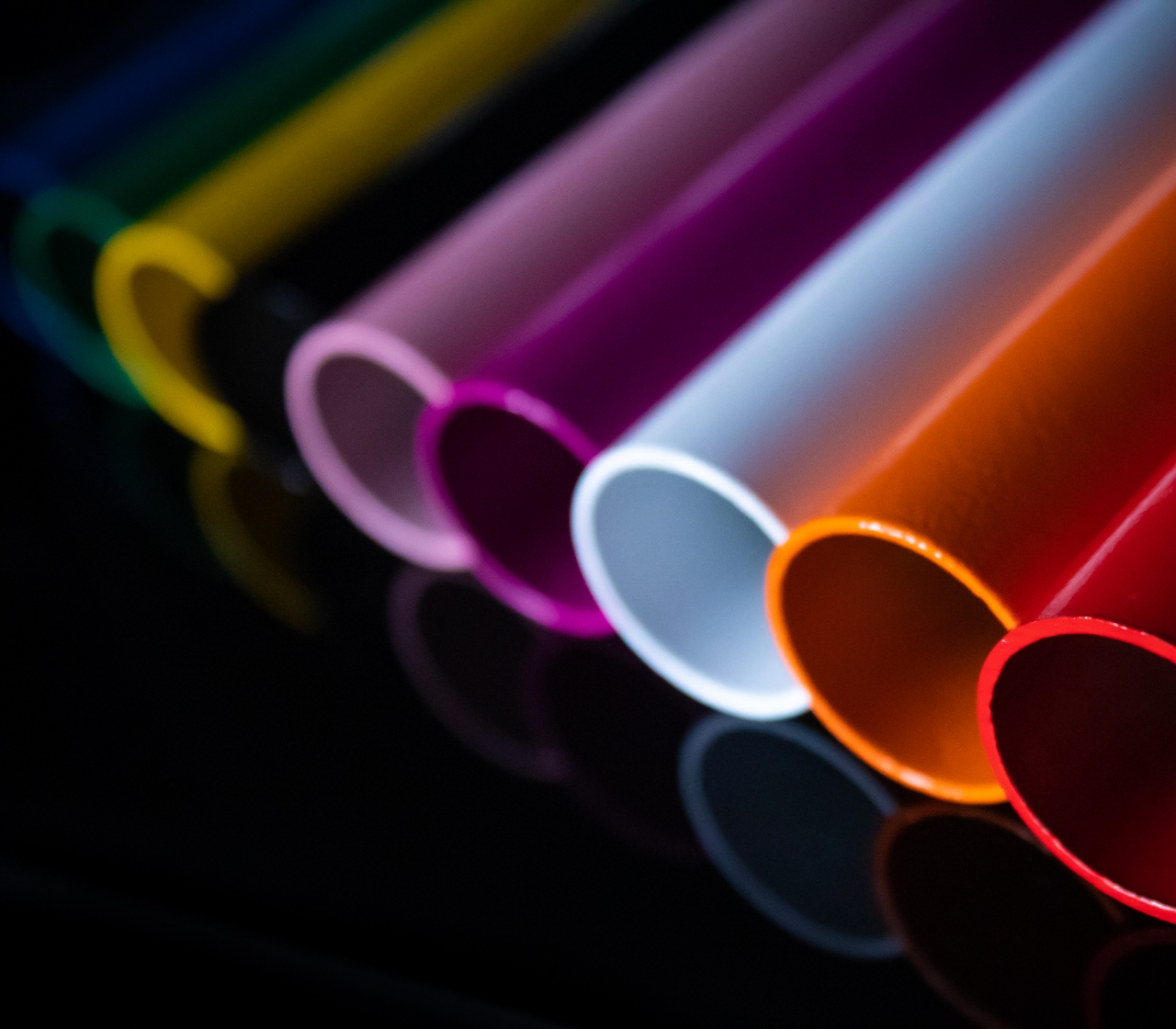

Color EMT is the safest and most effective way to quickly identify and trace designated wiring systems in many industrial and commercial applications. Color conduit is rapidly becoming a normal part of building planning and construction. Commonly used colored conduit applications are: Red – fire systems, Blue – data communications, Green – health care purposes, Yellow – high voltage, Purple – security, Orange – fiber optic and Black / White – architecture. Nucor is the only domestic manufacturer to produce powder-coated EMT, which features multiple cosmetic and durability benefits, including superior appearance, UV resistance and wear characteristics.

Nucor’s EMT steel conduit is manufactured in the USA from high-quality, flat-rolled EAF steel that is uniquely formulated for its high malleability. After forming and welding, the tubes receive a satin-smooth, corrosion-resistant zinc coating courtesy of Nucor’s exclusive electrogalvanizing process. A final passivation layer is added to the product to strengthen its corrosion-resistance properties.

Electrical conductors shall be enclosed in Electrunite^® EMT in accordance with the National Electrical Code (NEC). Electrical metallic tubing shall be mild steel, electrically welded, galvanized and produced to the following specifications:

• UL standard for Electrical Metallic tubing – steel, UL797, file # E7465
• National Electric Code, Article 358
• American National Standards Institute C80.3
• cUL Listing for CSA C22.2 No. 83.1-07

THIRD-PARTY CERTIFICATIONS: Nucor Tubular Products is committed to implementing effective quality, health, safety and environmental management systems and process. Our facilities are certified to ISO 9001:2015 (Quality).

• Consistent quality: Nucor IMC is manufactured for long life and provides complete physical and mechanical protection for any electrical wiring job. The finished pipe is uniform in outside diameter size, wall thickness and ductility, while its electro-galvanized zinc coating resists cracking, flaking and damage even from severe bending.
• Efficient installation: Silverslick^® protective inside diameter (I.D.) coating in the product reduces friction when pulling or pushing the wires and remains hard and smooth in various climate conditions. This friction reduction makes the installation process faster and easier.
• Cost-effective: Nucor’s IMC meets the same corrosion-resistance specifications as our heavier Galvite (ERMC-S) while also providing more inside space for wiring. The physical and mechanical properties of IMC ensure that the pipe has an extended shelf life, great for immediate use or storage without degradation in quality.
• Reduced life cycle cost: Our IMC is impact-resistant and chemically compatible with concrete. The product does not burn, decompose or give off harmful smoke or gases in a fire, guaranteeing that the fire-resistant rating of the penetrative assembly is not degraded. Nucor Tubular Product’s IMC is adaptable and can accommodate future wiring changes or upgrades as needed over the life of a building.
• Circularity: Our steel conduit can be 100 percent recycled at the end of its useful life. Nucor products are manufactured using EAF technology in the U.S. from domestically sourced scrap metal and raw materials.
• Made in America: Nucor Republic Conduit products are manufactured in the U.S. from American-made steel.

Nucor’s Intermediate Metal Conduit is produced to the following specifications:

• UL Standards for Electrical Intermediate Metal Conduit – Steel, UL 1242, File # E79211
• National Electric Code, 2014 Article 342 and Article 345)
• American National Standards Institute C80.6

Nucor’s Galvite is manufactured from high-quality, flat-rolled steel utilizing an electric resistance welding (ERW) process followed by hot-dip galvanizing. The resulting product has strong, smooth welds and a tightly-adhering, uniform zinc coating.

• High Strength: Galvite is durable, strong and suitable for the harshest environmental conditions, providing complete mechanical and physical protection to any electrical wiring project. The steel tube is welded to ensure it meets or even exceeds the most stringent quality standards. The inside surface of the pipe is obstruction-free and smooth, making wire pulling and pushing easy. 
• Reduced lifecycle cost: Nucor’s Galvite is impact-resistant and chemically compatible with concrete. The product does not burn, decompose or give off harmful smoke or gasses in a fire, guaranteeing that the fire-resistive rating of the penetrative assembly is not degraded. The product is adaptable and can accommodate future wiring changes or upgrades as needed over the life of a building. The physical and mechanical properties ensure that the pipe has an extended shelf life, great for immediate use or storage without degradation in quality. Our steel conduit can also be 100 percent recycled at the end of its useful life. 
• Protection: Using system grounding and electromagnetic interference shielding, Galvite protects people from harmful effects of faulty wiring and shields any nearby electrical and electronic equipment from damage by electromagnetic fields. 
• Made in America: Nucor Republic Conduit products are 100% manufactured in the U.S. from American-made steel.

Architects and engineers who want to specify Galvite ERMC-S conduit from Nucor should include the following description in the drawings:

Electrical conductors shall be enclosed in Galvite ERMC-S in accordance with the National Electric Code. Rigid steel conduit shall be mild steel, manufactured, hot-dip galvanized and produced to the following specification:

• UL Standard for Electric Rigid Metal Conduit – Steel, UL 6, File # E104582
• National Electric Code, Article 344
• American National Standards Institute C80.1
• cUL listing for CSA C22.2 No. 45.1-07

THIRD-PARTY CERTIFICATIONS: Nucor Tubular Products is committed to implementing effective quality, health, safety and environmental management systems and processes. Our facilities are certified to ISO 9001:2015 (Quality).

EMI protects people from the harmful effects of faulty wiring and shields any nearby electrical and electronic equipment from damage by electromagnetic fields.
