System features of RIB-BAK^® U-channel include:

• Crashworthy to NCHRP 350 criteria
• U.S. new billet steel
• 80,000-Lb. minimum yield
• 80-100 ksi yield strength
• Exceeds ASTM requirements
• Available in seven sizes
• Powder coated or galvanized (bare available)
• Fast, easy installation with conventional tools
• Flush contact points for solid sign attachment

Only Nucor gives you superior rust-resistant protection, durability and appearance of powder coating at the price of paint. POWDER-SHELL^® is available for all sizes of RIB-BAK^® in green, black, yellow, white, orange and brown (other colors by request) and meets all NCHRP 350 requirements. For the ultimate protection against the elements, RIB-BAK posts are also available in hot-dipped galvanized (ASTM A123).

Features:

• Smooth Glossy or Matte Textured Polyester Powder Coat
• Gloss: ASTM D523 75-85%
• Pencil hardness: ASTM D3363 H-2H
• Adhesion: ASTM D3359 5B
• Flexibility: ASTM D522 1/8th Inch
• Direct impact: ASTM D2794 160 in./lbs. @ 2.0 mil
• Reverse impact: ASTM D2794 160 in./lbs. @ 2.0 mil

Yes, RIB-BAK and U-channel signposts and breakaway systems are accepted by the FHWA (Federal Highway Administration) for small sign support applications and also meet the NCHRP 350 criteria for occupant impact velocity.

NOTE: 3 lbs. /ft x 3 supports and all 4 lbs./ft supports must use breakaway hardware to comply with FHWA breakaway requirements.

Nucor’s steel highway products meet or exceed the following ASTM specifications (ASTM specification details available upon request):

• Steel MDS: ASTM A499 Yield Strength, ASTM A1 Chemical Analysis, ASTM A1075-12 Standard Specification for Flanged Steel U-Channel Posts
• Galvanizing MDS: ASTM A123-89a Zinc Coating on Steel
• Powder coating MDS: ASTM D523 Gloss, ASTM D3363 H-2H Pencil Hardness, ASTM D522 Flexibility, ASTM D3359 5B Adhesion, ASTM D2794 Direct and Reverse Impact

Yes, our NU-POST™ T posts or grape stakes are available in a variety of sizes and finishes to meet your needs.

Signpost breakaway systems are critical safety features to support structures designed to fracture, yield or detach safely upon impact, reducing the risk of injury and vehicle damage in collisions. These systems are commonly used for road signs on highways, intersections, urban roads and parking areas to enhance roadside safety. All Nucor breakaway systems are FHWA approved to meet the federal safety standards for roadside structures.

System features of BEND-BAK^®:

• Priced three to four times less than plastic or fiberglass delineators
• Cost less to install and repair than plastic or fiberglass delineators
• Drive directly into the ground without bending
• Easily straightened manually when needed
• Available in a variety of lengths up to eight feet
• Powder-Shell coated in a variety of colors

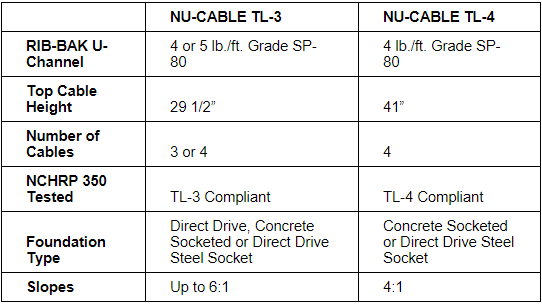

System features include:

• Deflection ranges from 5.25’ to 9.81’. Deflection can be varied to meet road/terrain requirements.
• Available in both 3-cable (TL-) and 4-cable (TL-4) designs
• Easy to maintain and repair – lower installation costs are augmented by continuing savings.
• Utilizes high-strength (up to 100 ksi yield strength) 4-lb. or 5-lb. RIB-BAK^® U-channel breakaway steel posts galvanized for additional durability.
• Posts can be driven in soil, direct-driven steel socketed foundations or concrete socket foundations
• Cables and posts are attached with unique locking hook bolts that absorb energy during crashes.
• Utilizes cost-effective standard ¾” steel cables, tensioned up to 5,600 lbs. (25KN). Cables are tensioned on site, and installers can customize tension to meet site needs.
• NCHRP 350-approved system tested superior in deflection tests to a competitive cable system that uses plastic inserts instead of hook bolts.
• Anchored at both ends into FHWA-approved Cable Release Posts.
• A visually appealing see-through system allows for better driver visibility and snow pass-through.
• It can be repaired after being hit in as quickly as 30 minutes.
• Post Spacing: 6.6′ to 20′.

System features include:

• Easy to maintain and repair – lower installation costs are augmented by continuing savings.
• Utilizes strong (up to 100 ksi yield strength) yet economical 4-lb. Nucor Steel RIB-BAK U-channel breakaway steel posts (as an alternative to the S3 x 5.7 x 5′ – 3″).
• Posts are galvanized for long life.
• The Nucor 4 lb. RIB-BAK post is an accepted alternate post for the commonly used generic low-tension systems on the roadway today.
• Cables and posts are attached with standard J-bolt connection hardware.
• Anchored at both ends into FHWA-approved cable release posts.
• A visually appealing see-through system allows for better driver visibility and snow pass-through.
• It can be repaired after being hit in as quickly as 30 minutes.
• The Modified RIB-BAK Low-Tension System utilizes the Nucor locking hook bolts and the 4 lb. RIB-BAK U-Channel post. This system allows for deflections of less than 12 feet.

System features include:

• Crashworthy to Manual for Assessing Safety Hardware (MASH) Test Level 3 (TL-3 compliant) criteria and deemed eligible by the FHWA for roadside applications with design speeds up to 65 mph and wherever a maximum dynamic deflection of 88” [2235] is allowed (Ref. B-288).
• Does not require offset blocks. The narrow profile of this barrier is valuable when roadside space is limited.
• RIB-BAK^® 4 lb./ft. U-Channel post is lighter, easier and faster to install than S3x5.7 I-beam posts and are available galvanized or powder coated.
• Through-bolt slot works to maintain rail height during impact and allows for a more tolerant installation height than other comparable modified weak-post systems.
• Utilizes the same post spacing and flying splice rail elements as comparable modified weak-post guardrail systems, but with less hardware, no soil plate and reduced normalized deflection.

System features include:

• Crashworthy to NCHRP 350 (TL-3 and TL-4 compliant) and MASH
  (TL-3compliant) criteria.
• Does not require offset blocks.
• FHWA accepted for use on roads with design speeds up to 65 mph (Ref. B-162).
• RIB-BAK^® 5 lb./ft. U-channel posts are easier and faster to install than wood or I-beam posts.
• RIB-BAK® U-Channel posts are available as galvanized or powder coated.
• Approved for both roadside and median applications.
• Median configurations for 31″ rail height applications.
• The narrow profile of this barrier is valuable when roadside space is limited.
• Through-bolt slot works to maintain rail height during impact.

System benefits include:

• Crashworthy to NCHRP 350 criteria (TL-3 compliant).
• FHWA accepted for use on roads with design speeds up to 65 mph (Ref. B-162).
• RIB-BAK^® 5 lb./ft. U-channel posts are easier and faster to install than wood or I-beam posts.
• RIB-BAK^® U-Channel posts are available galvanized or powder coated
• Approved for roadside applications
• Through-bolt slot works to maintain rail height during impact.

A traffic delineator post is a highly visible traffic control device used to guide and warn drivers by marking the edges of roadways, lanes or hazards and is designed to be durable, flexible and impact-resistant. Nucor manufactures BEND-BAK^® mild-carbon steel flexible delineator posts that bend without breaking, combining the strength and durability of steel with the flexibility of plastic and fiberglass.

A cable barrier is a flexible roadside safety system designed to prevent vehicles from crossing medians or veering off the road. Made of high-tension steel cables mounted on steel posts, cable barriers absorb impact energy and redirect vehicles, reducing the severity of crashes. Highway barriers are widely used on highways and interstates due to their proven effectiveness in reducing crash severity, particularly in preventing crossover accidents.

Highway end treatments are safety devices installed at the ends of guardrails, barriers or other roadside structures to reduce the risk of accidents or injuries in the event of a vehicle collision. These treatments are designed to absorb impact, redirect the vehicle safely and prevent the vehicle from hitting a hard, rigid barrier. Nucor’s FHWA-approved end treatments include CRP Anchor, NU-TEN^® and Transition.

The NU-TEN^® terminal end is used to anchor NU-CABLE high-tensioned 3 or 4 cable barriers. All cables connect to the unique “trigger” post, which is attached to the ground strut, while concrete foundations and rebar cages complete the anchor set-up. The NU-TEN terminal end has been designed and tested to meet the evaluation criteria of NCHRP 350 Test Level 3 (TL-3) for a cable barrier terminal end.
